生产设备 Production Equipment

Product Name/No.

Product Images

Product Description

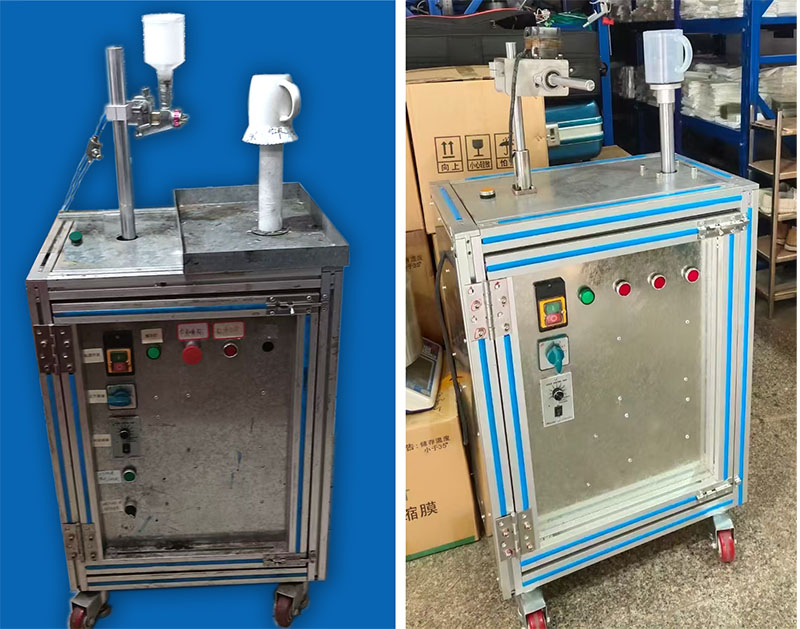

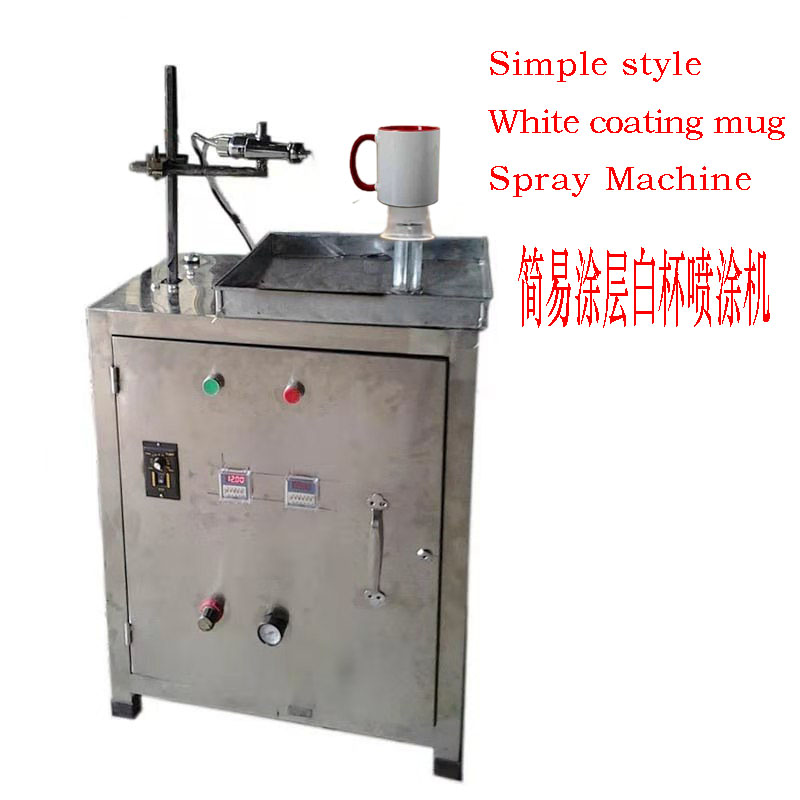

简易喷涂机

Simple style

Mug-coating

Machine

由一支WA101自动喷枪，一台220(或110)V15W齿轮减速电机，

气源调节阀，气动电磁阀，时间继电器，机箱等组装而成。

结构简单，稳定性高，使用维护简单。

喷枪可以调整上下前后左右位置，但不能上下往复移动；杯子转台开机

后一直不停转动，转速可调。可以手动启动喷涂动作，也可以设置为自动

间歇打开喷枪喷涂。可以单人操作，也可以双人操作。最快一小时可喷涂

800个标准马克杯。

Made by a WA101 automatic spray gun, a 220 (or 110) V15W gear reduction motor,Gas source control valve, pneumatic electromagnetically operated valve, time relay, chassis and other assembly.
The utility model has the advantages of simple structure, high stability and simple operation and maintenance.
The spray gun can be adjusted up and down, front and back, left and right positions, but can not move up and down; The mug turntable has been rotating continuously after it is turned on, and the speed is adjustable. Can start spraying action manually, can also be set to automatic intermittent open spray gun spraying. It can be operated by one person or two. Up to 800 standard mugs can be coated in one hour.

下往复式

PLC控制喷涂机

Single station

up&down repeatedly

PLC control mug coating machine

本机采用工业铝型材，不锈钢面板，重型滚珠丝杆步进电机模组，

采用PLC编程控制器，功能调节简单方便，机械运行精密稳定；

可用于在白杯，玻璃瓶，金属保温涂层杯等表面喷涂透明和彩色颜料。

安装一支WA101自动喷枪，上下往复式运行，以保证涂层在杯身表面

喷涂均匀；每小时可最快生产500个透明涂层杯，或200个彩色杯。

This machine adopts industrial aluminum profile, stainless steel panel, heavy duty ball screw stepper motor module,
Adopt PLC programming controller, function adjustment is simple and convenient, mechanical operation precision and stability;
It can be used to spray transparent and color pigments on the surface of white mugs, glass bottles, metal thermos coated mugs, etc.
Install a WA101 automatic spray gun, up and down reciprocating operation, to ensure that the coating on the surface of the cup evenly spraying; It can produce up to 500 clear coated cups per hour, or 200 colored mugs.

下往复式

PLC控制喷涂机

Single station

up&down repeatedly

PLC control mug

 coating machine

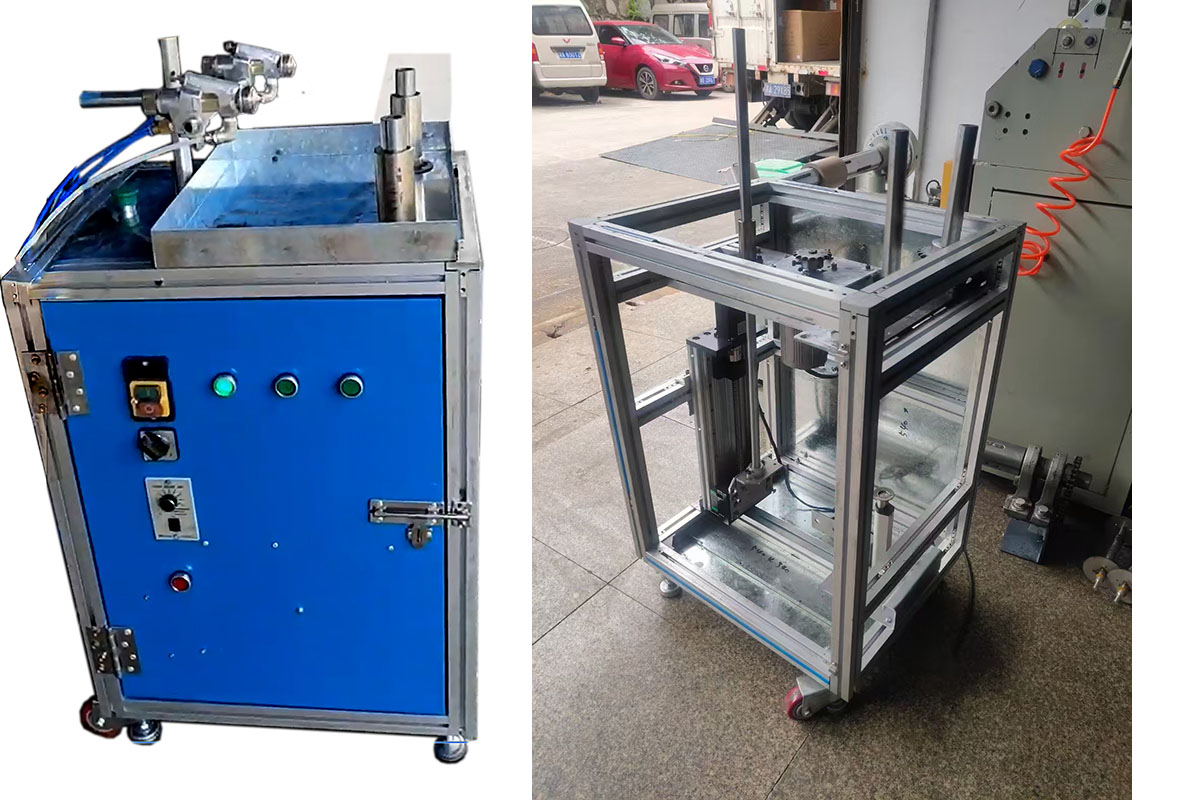

比起单工位上下往复式PLC控制喷涂机，多加了一套喷枪和转动台；

因此生产产量增加了一倍。

Compared with the single station up and down reciprocating PLC control spraying machine, increased a  set of spray guns and rotary table;Therefore, the production has doubled.

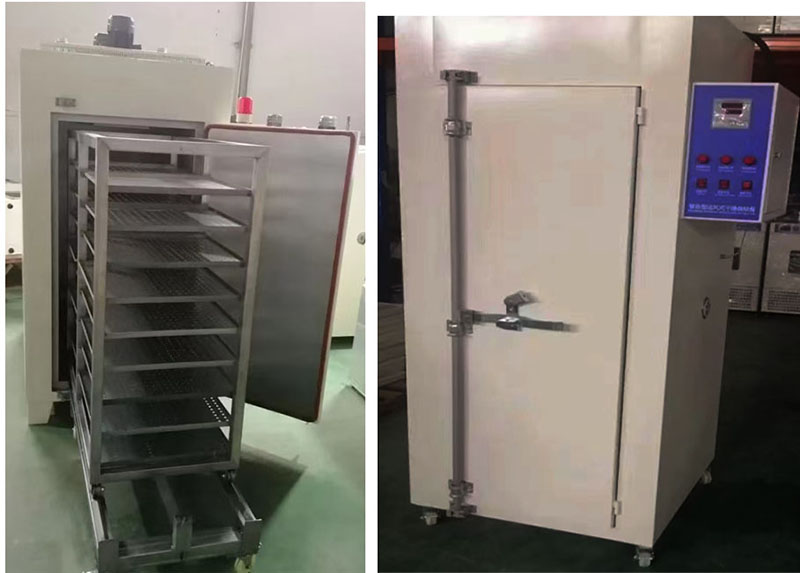

风对流箱式烤箱

Wind circulation

standard mugs

Cabinet oven

外尺寸external size:

140X120X200cm（不包括控制箱和风扇电机）

(not include the electronic control box & fan motor)

内尺寸Inner size:120X80X150cm

重量Weight:450kg

电压Voltage: 220V

功率Power: 18KW

风扇转速Fan speed:1400r/m

一次可以烤400只11盎司标准马克杯

It can bake 360 11OZ mugs

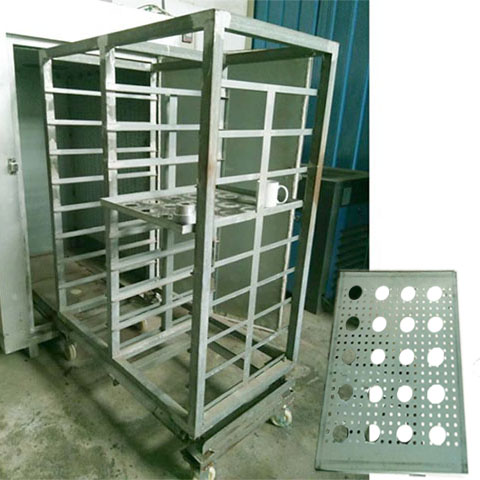

烤箱推车架子

Storage

Baking vichle

多孔烘烤盘

Multihole bake plate

用于烘烤涂层杯或存放杯子

建议每台烤箱最好配备2套推车

Use to bake the mugs in the oven,

or store the mugs;

One oven needs  2 or more  vichles

放在推车架子上推进烤箱烘烤杯子

一套推车架子放18个多孔盘

Used to baking the coating-mug

in tunnel furnace or oven,

1 vichle need 18 pcs plates

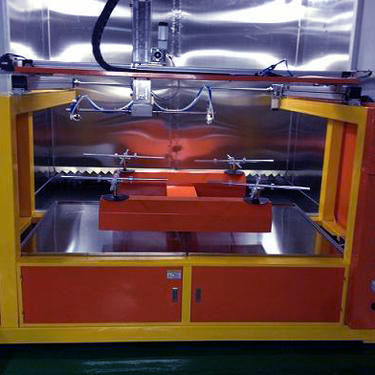

双轴喷涂机

Tile/Plate

coating machine

用于生产热转印瓷板，陶瓷盘子

等平面类物体，最大喷涂尺寸500*500mm

Used to producing sublimation tiles and plates,

 maximum spray size:

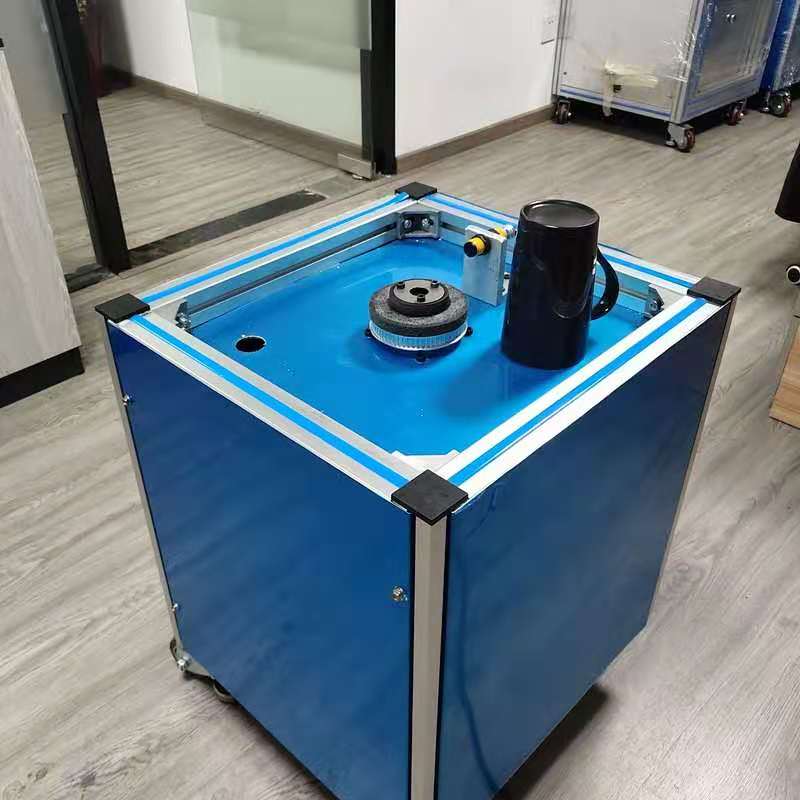

彩喷杯修口机

Color-coating mug rim clean polish machine

(Use grinding disc)

Used to clean off the excess coating

around the rim of mug

彩喷杯修口机

Color-coating mug rim clean polish machine

(use sand paper)

Used for clean off the excess coating

around the rim of mug

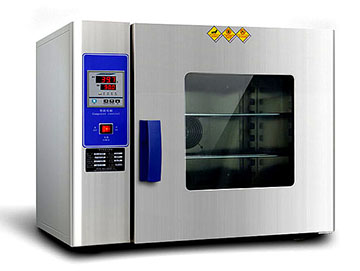

Experimetal Oven

Used for coating material test, make coating mug sample,

or use with subli-shrink to make photo mug

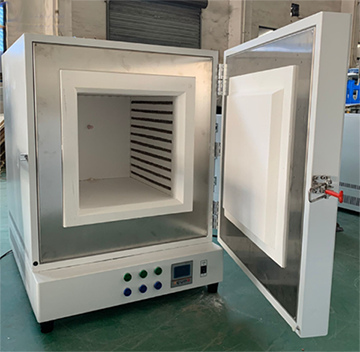

Muffle Furnaces

Used to burn off the dirty coated mug,

clean and reuse it

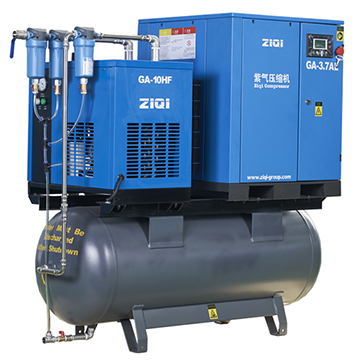

Air Compressor

根据产能需要选择合适的大小

建议当地采购

Provide compress air for the coating machine,

dust spray gun,etc. According to the

production needs,to choose the right specifications.

Advice buy local.

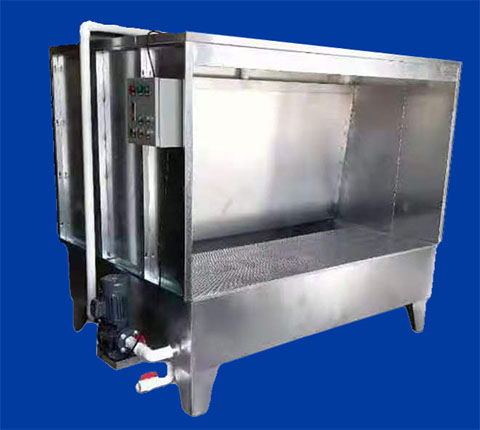

Water curtain cabinet

通过管道泵循环将水箱内经过过滤的水抽至上部水槽，由水槽溢流至水帘板形成水帘，并通过离心风机的离心力、将水箱内的水形成涡卷，产生水幕，将喷枪在喷漆室涂装工作所飘散的漆雾由吸风引导，冲洗在水里，经漆雾漆净化器之水帘和水雾的冲洗过滤，再经气水分离器挡漆板收集过滤网，从而完成漆雾净化起到环保的作用，又保证了操作人员健康、良好的工作环境。Recommend local purchase.

生产原料 Production materials

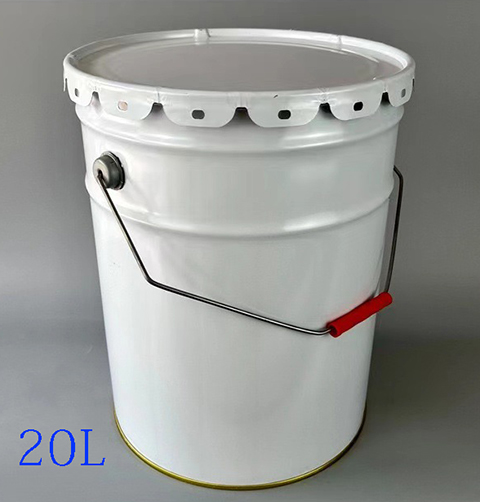

单组份普通

热转印涂层

Nomal

Transparent

Sublimation

coating

Economical oily coating,

 180°C bake 40 minutes

单组份过洗碗机

热转印涂层

Dishwasher safe

Transparent

sublimation coaing

220-240°C bake 40 minutes

It    can withstand

双组份变色杯

热转印涂层A

Double component colorchanging mug coating Part A

Use for colorchanging mug and other low temperature

 baking objects (wood/bamboo/shell,etc.)

双组份变色杯

热转印涂层B

Double component colorchanging mug coating Part A

Sublimation

Made from high-quality titanium dioxide,

热转印橡胶手感

涂层组份A

Soft silicon feeling

Coaitng PartA

Part A: Part B = 5:1

160°C  bake 40 minutes

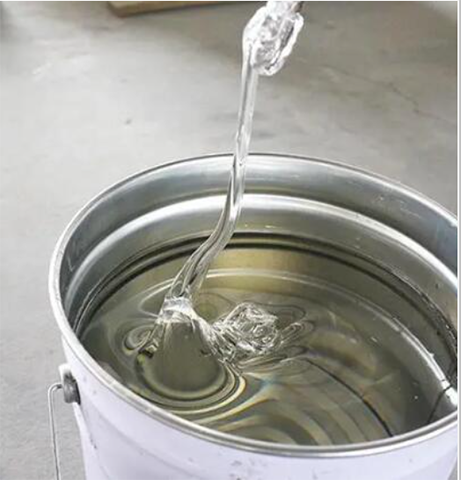

超浓热转印

透明油墨

Thick transparent

Sublimation ink

Use for screen printing

Can not use alone,

 must mix with curing agent

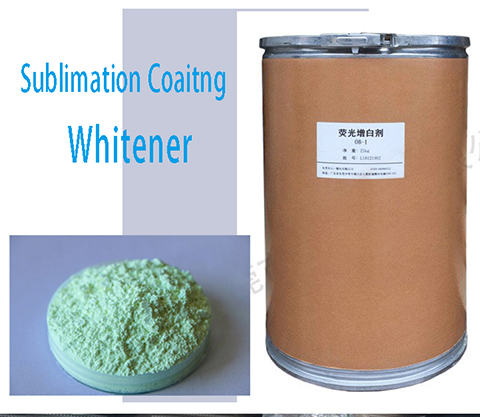

Coating brightner

more white, few dosage.

Anti-scratch

Anti pin-hole Coating additives

prevent the surface of coanting

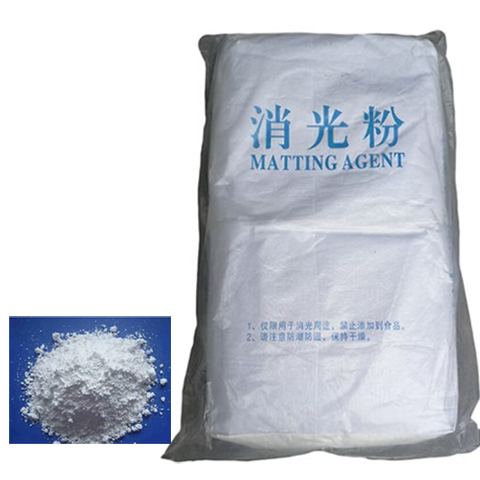

Matting agent

Moultiple Colors

 glitter powder

Use for glittr colorchanging mug and

other metal/ glass cup and bottle, etc.

 Silver

shining

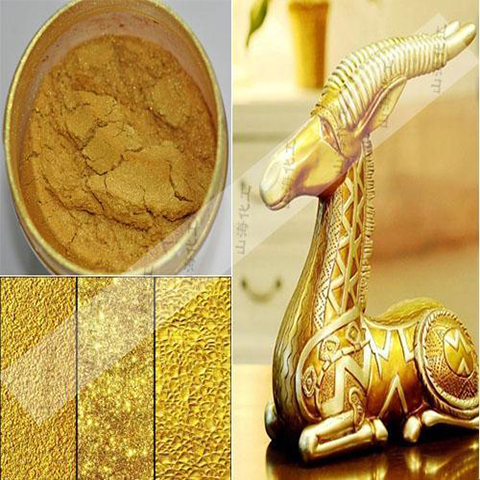

Used to produce shining golden

 sublimation mug;

1kg can produce above 5000 mugs

 Golden

shining

Used to produce shining golden or

silver sublimation mug;

1kg can produce above 5000 mugs

Phosphor powder

Temperature sensitivity

Colorchanging

powder

The color will disppear at certain temprature,

Usualy use 45 or 50°C powder

Night glow powder

                   This powder absorbs light

during the day and glows at night.

High concentration

Use for changing the coanting color,
