热转印收缩膜常用规格表
Common sublimation shrink wrap specifications
(热缩膜列表适用杯型只是典型举例，其它尺寸相近的容器也可以适用)
(Shrink wrap list applicable cup type is only a typical example,
other containers of similar size can also be used)
| 陶瓷类杯具 Ceramic Drinkware/Container | ||||||||
|
杯具名称/尺寸 Drinkware Name/size |
杯具图片 Drinkware Images |
热缩膜图片 Subli-shrink wrap Images |
热缩膜规格 Subli-shrink wrap Specifications |
|||||

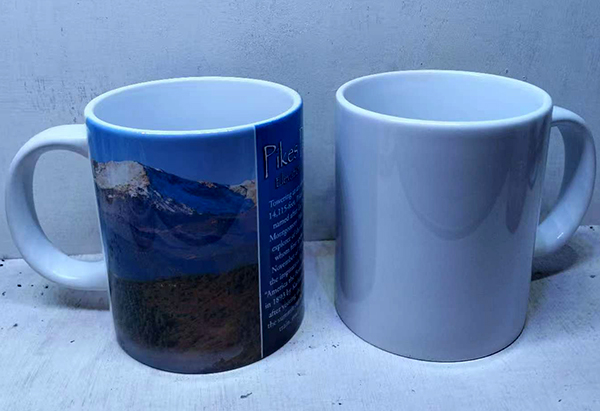

| 11盎司马克杯 11oz Mug Φ82*H96mm |
 |
 |

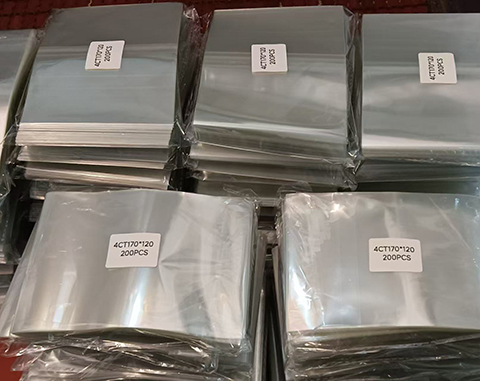

Patented Quick Tear Subli-shrink wrap 4CW170*120mm (100Pcs/pack) |
|||||
| 15盎司马克杯 15oz Mug Φ86*H120mm |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW175*135mm (100Pcs/pack) |
|||||
| 16盎司大漏斗杯 16oz Vshape mug Φ90/68*H160mm |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW175*175mm (100Pcs/pack) |
|||||
| 12盎司小漏斗杯 16oz Vshape mug Φ82/68*H120mm |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW170*135mm (100Pcs/pack) |
|||||
| 3.5盎司小马克杯 3.5oz Mug Φ60*H67MM
|
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW125*90mm (100Pcs/pack) |
|||||
| 陶瓷狗碗 Ceramic dogbowl Φ180*H76mm |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW290*120mm (100Pcs/pack) |
|||||
| 陶瓷猫碗 ceramic catbowl Φ150*H64mm |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW250*100mm (100Pcs/pack) |
|||||
| 方形杯 square mug |
 |
 |
量杯定做 Made to Measure |
|||||
| 梯形方杯 Trapezoid square |
 |
 |
量杯定做 Made to Measure |
|||||
| 椭圆杯 Oval cup |
 |
 |
量杯定做 Made to Measure |
|||||
| 上圆下方叉勺杯 Round mouth Square bottom coating mug |
 |
 |
量杯定做 Made to Measure |
|||||
| 各种鼓肚、细腰、反口、收底、扩底等，直面/弧面水杯 All kinds of bulging belly, slender waist, reverse mouth, bottom closing, bottom expanding, etc., straight / curved shape cup |
 |
 |
量杯定做 Made to Measure |
|||||
|

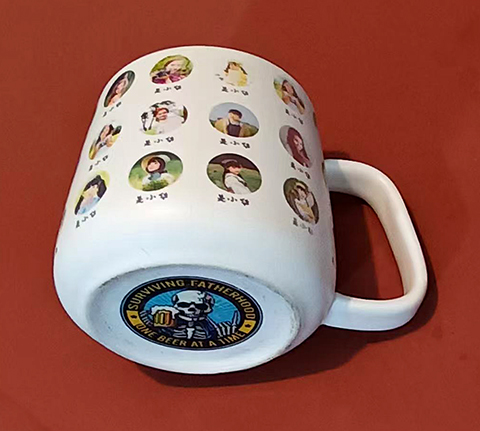

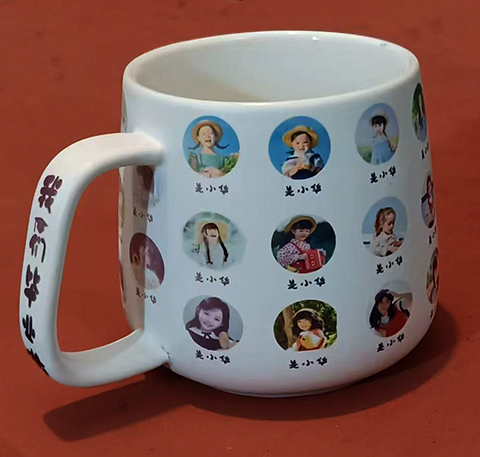

热销款暖暖咖啡杯 Well sell warm coffe mug |
 |
 |
杯身：180*120 杯把杯底：200*50 |
|||||
|

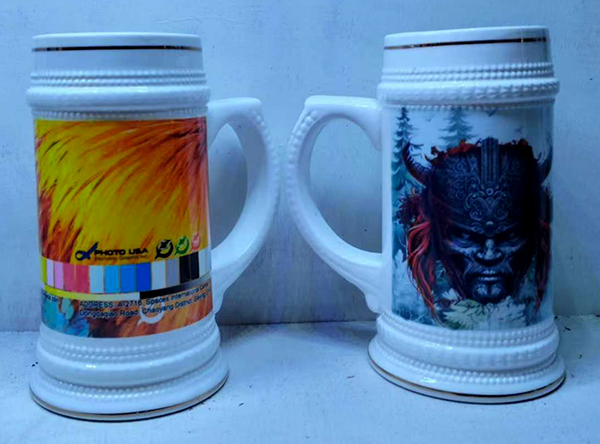

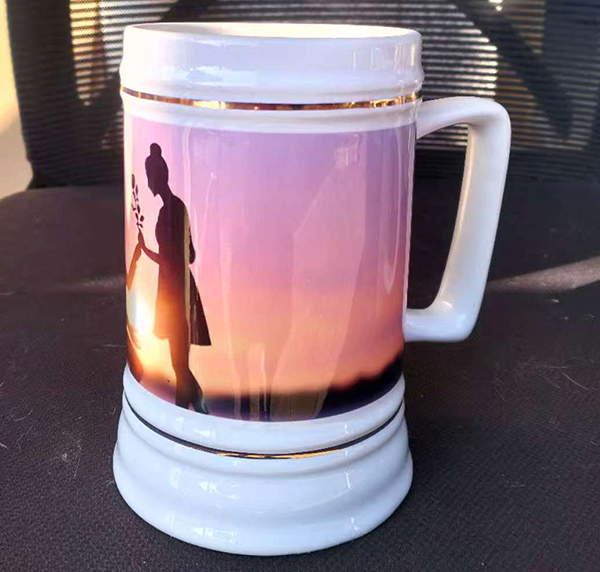

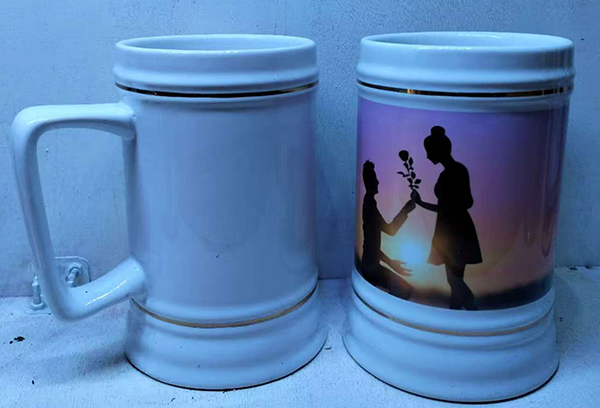

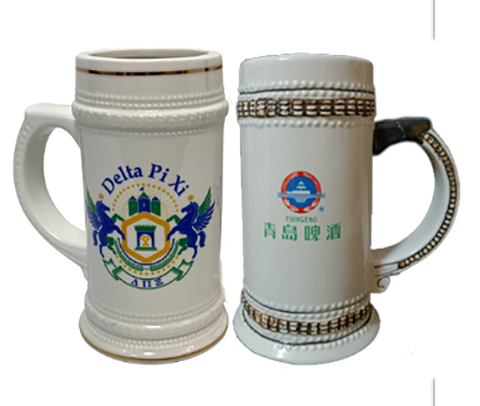

德式陶瓷啤酒杯 Germanbeer mug |
 |
 |
量杯定做 Made to Measure
|
|||||
|

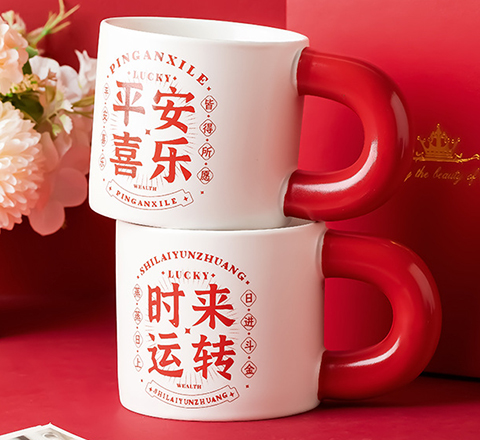

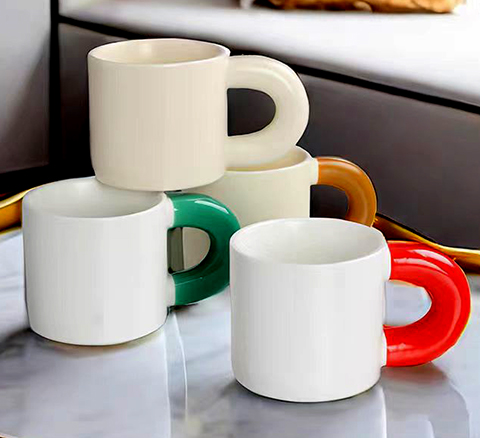

醴陵胖胖杯 Liling chubby mug |
 |
 |
4CW200*120 | |||||
|
潮州镜面盖 随手杯 Chaozhou irregular drink ware |
 |
 |
量杯定做 Made to Measure |
|||||

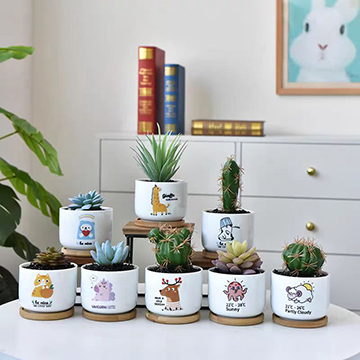

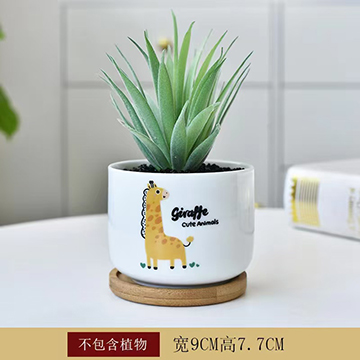

| 热款白瓷小花盆 White porcelain small flower pot (D90/H77mm) |
 |
 |
Patent quick tear subli-shrink 4CW150*120 |
|||||
| 陶瓷饼干罐 Ceramic Cookie Jar |
 |
 |
250*180mm | |||||

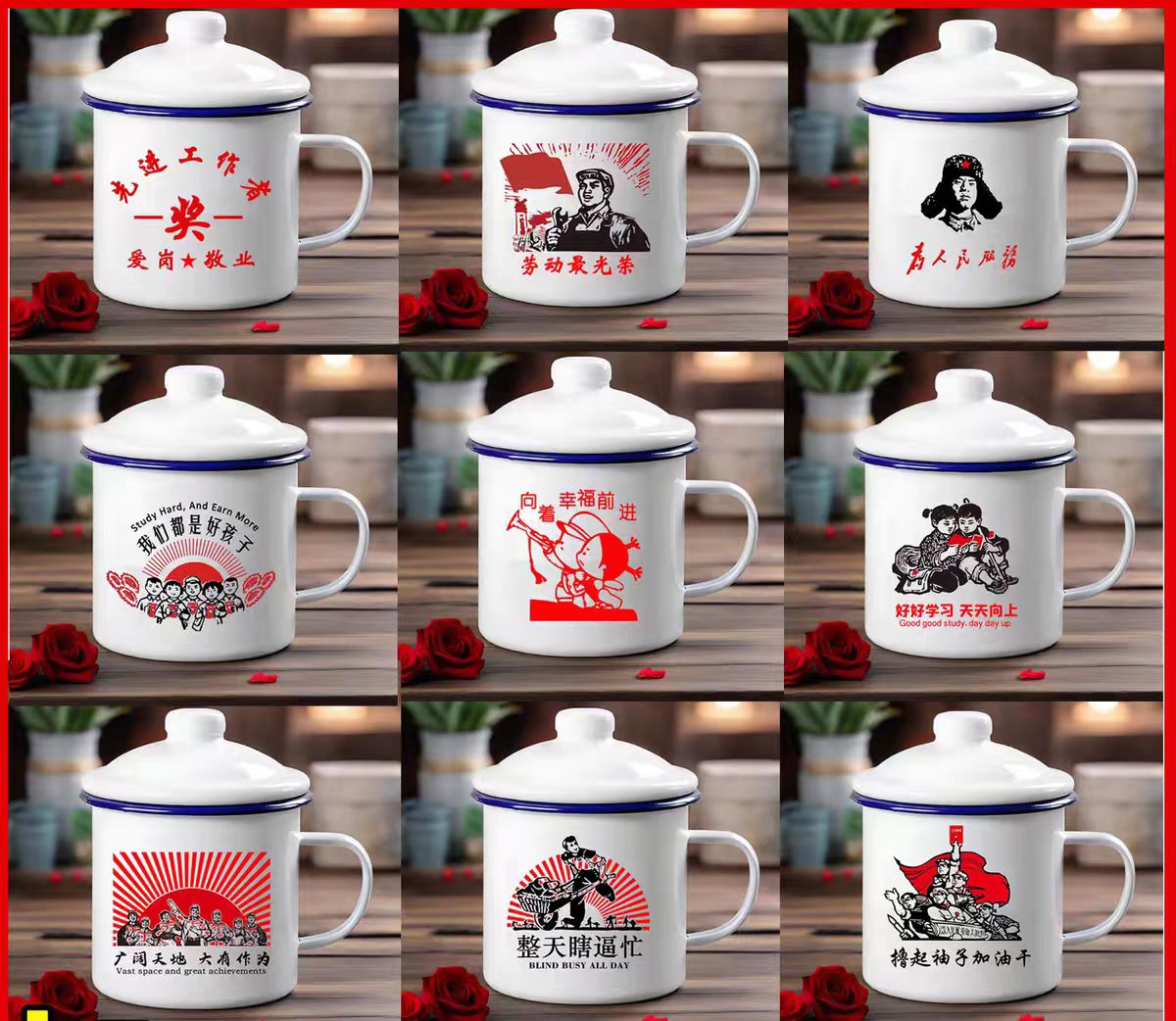

| 各款搪瓷杯 Enamel mug series |
 |
 |
常用8/9/10cm搪瓷杯 热缩膜尺寸分别为： Commonly used 8 / 9 /
10cm enamel mug
165*80/180*90/210*95 |
|||||
| 玻璃杯具器皿 Ceramic Drinkware/Container |
||||||||
|

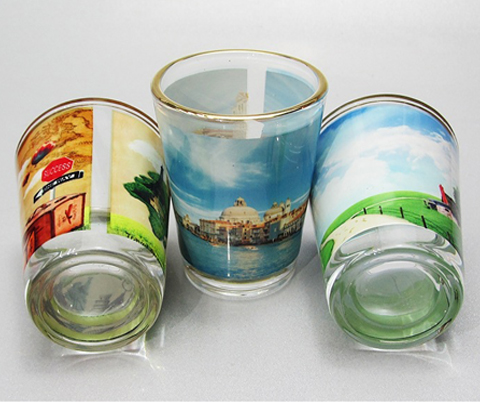

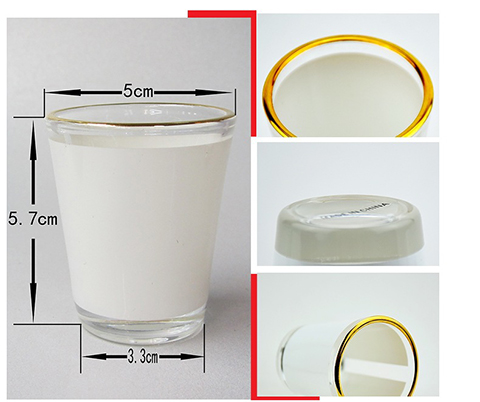

爆款1.5盎司 玻璃小酒杯 1.5OZ Mini vine glass |
 |
 |
90*100mm | |||||
|

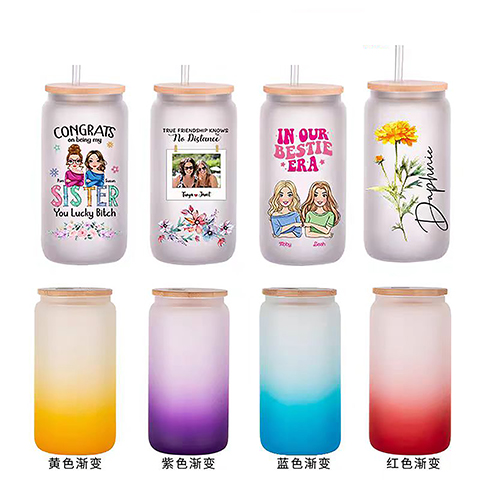

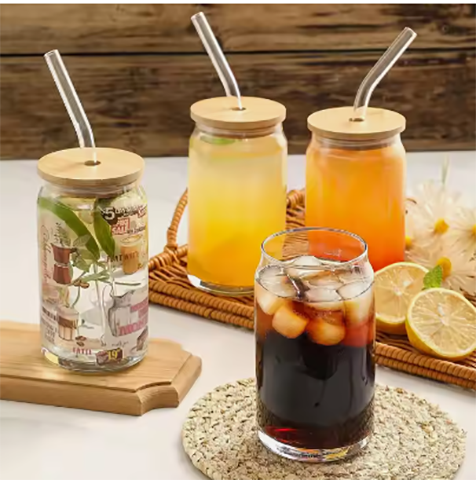

网红16盎司可乐罐 玻璃饮料杯 16OZ coke glasses
|
 |
 |
4cw130*205mm | |||||
|

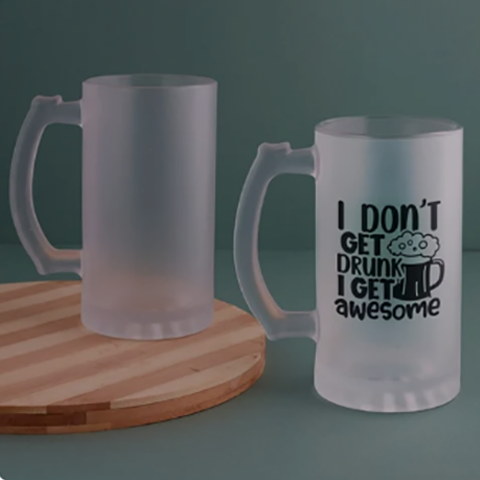

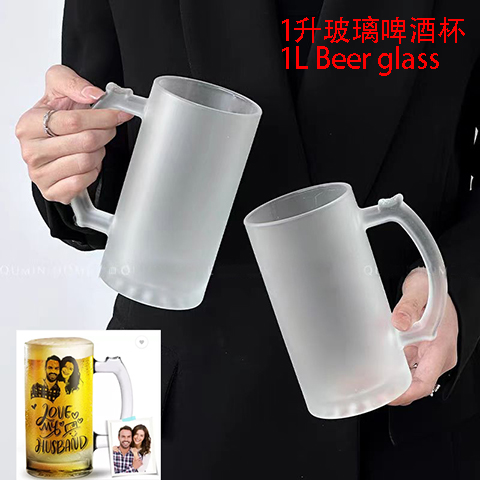

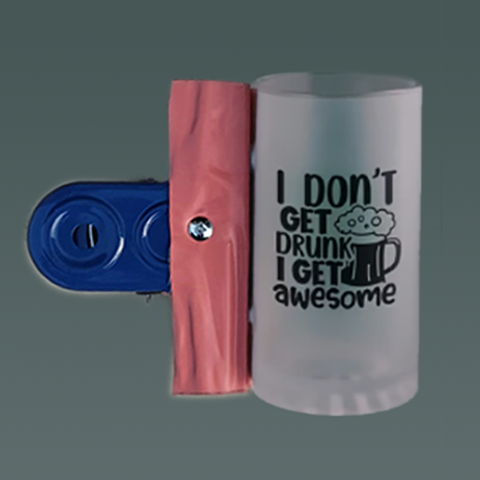

经典1升玻璃啤酒杯 1 Liter beer glass |
 |
 |
4CW180*200mm | |||||
|
一斤装茅台 白玻璃酒瓶 500g Maotai white glass Bottle |
 |
 |
135*180mm | |||||
|
其它玻璃饮料杯 玻璃红酒瓶 玻璃香水瓶 Other glass drinkware red wine bottle Perfume bottle |
 |
 |
量杯定做 Made to Measure |
|||||
|

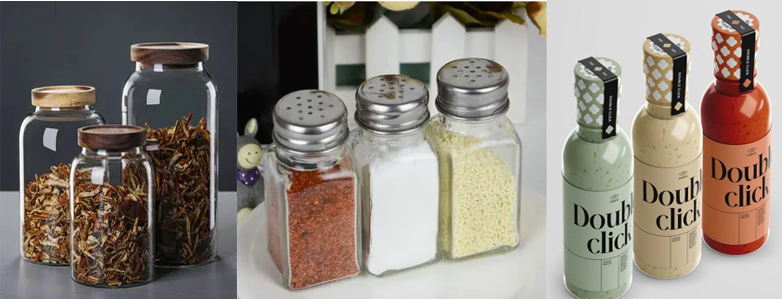

其它玻璃食品 包装容器 Glass food packing containers |
 |
量身定做 Made to Measure
|
||||||
|
不锈钢保温杯及其它金属制品包装容器 Stainless steel tumblers & Other metal containers |
||||||||
| 热转印圆珠笔 Sublimation ballpoint pen |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW20*120mm |
|||||
| 15/20盎司平底不锈钢保温杯 15/20oz Skinny sublimation tumbler |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW125*250mm
|
|||||
|
30盎司直身平底 保温杯/ 500毫升苏打罐 30OZ Skinny Tumbler/500ml Soda Can Tumbler |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW135*260mm |
|||||
| 10盎司带把手平底黑咖啡杯 10oz cofee tumbler mug with handle |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW175*175mm
|
|||||
| 20盎司汽车杯 20oz stanley Car tumbler |
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW170*255mm
|
|||||
| 30盎司汽车杯 30oz stanley Car tumbler
|
 |
|
Patented Quick Tear Subli-shrink wrap 4CW180*290mm
|
|||||

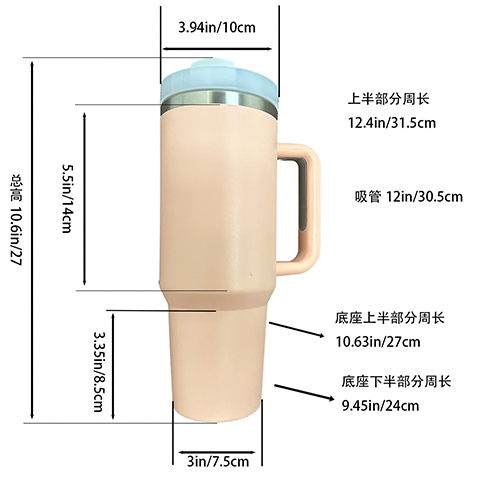

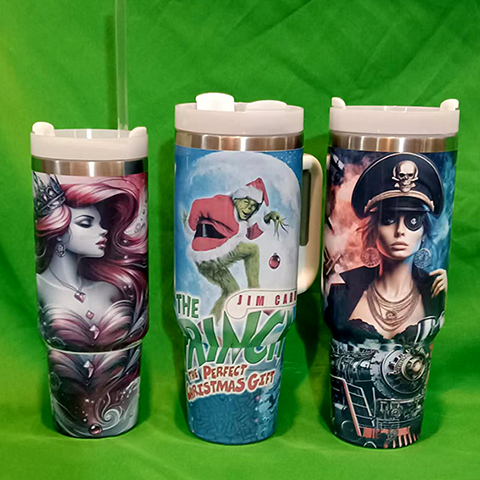

| 40盎司汽车杯 40oz stanley Car tumbler
|
 |
 |
Patented Quick Tear Subli-shrink wrap 4CW210*290mm
|
|||||
| 12盎司蛋形杯 10盎司吸管杯 12oz egg shape wine tumbler |
 |
|
Patented Quick Tear Subli-shrink wrap 4CW155*190mm
|
|||||
| 30盎司花瓶杯 30oz vase shape cup |
 |
|
Patented Quick Tear Subli-shrink wrap 4CW150*290mm
|
|||||
| 其它大尺寸保温杯 Other big size drinkware |
|
量杯定做 Made to Measure |
||||||

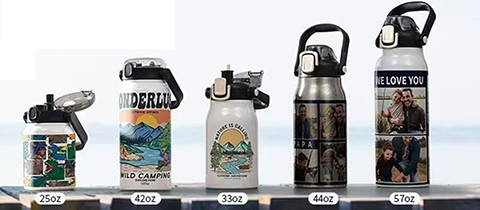

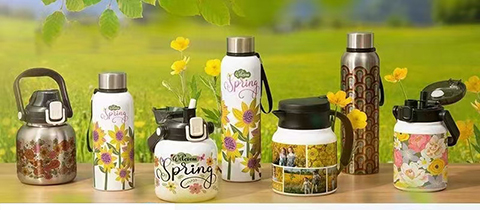

| 其它大尺寸水壶 Other big size drinkware |
 |
量杯定做 Made to Measure |
||||||

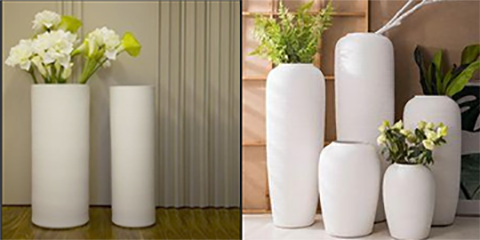

| 简约落地花瓶 Simple style Floor vase
|
 |
量身定做 Made to Measure |
||||||
|

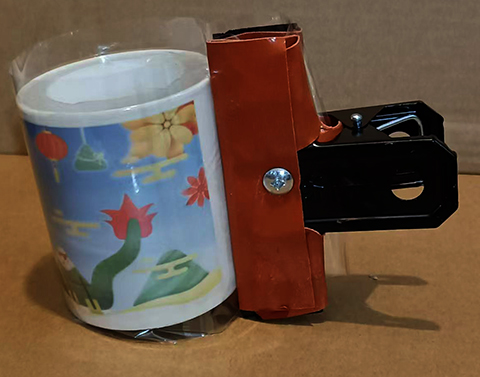

零利润专供版 11盎司涂层马克杯 热转印收缩膜
zero profit 11OZ coating-mug subli-shrink wrap
|
 |
|

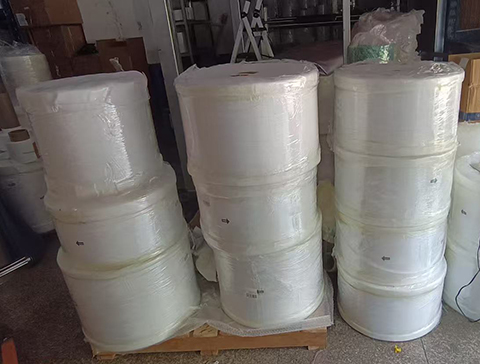

采用透明40um厚PET 热收缩膜 为基材，不含快撕条 一次性购买20万只以上 Made by 40um PET heatshrink film, no quick-tear tape one time purchase 200000PCS |
|||||
|
平面类物体真空热转印袋 |
||||||||

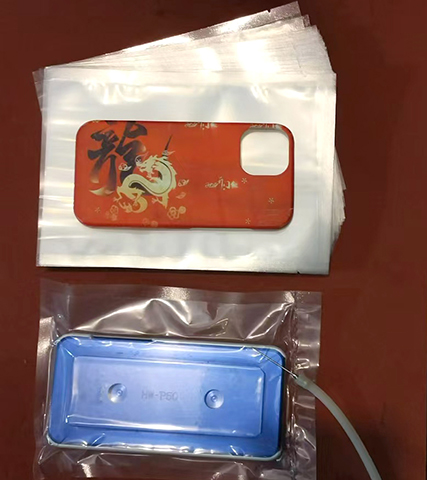

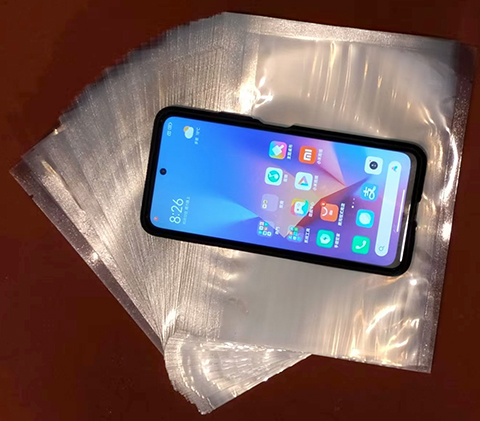

| 手机壳 真空热转印袋 |
 |
 |
7寸以内手机壳通用 真空热转印袋规格： 140*200mm |
|||||

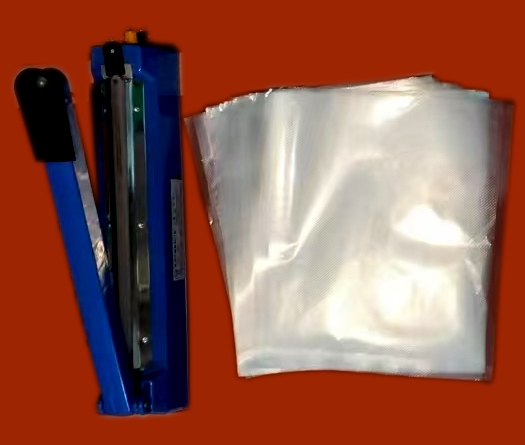

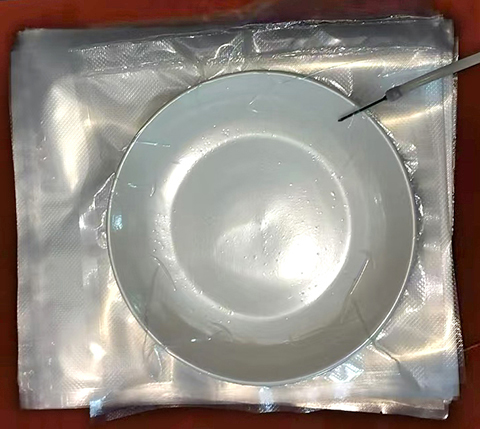

| 6-8寸影像盘 真空热转印袋 |
 |
 |
6-8英寸盘子通用 真空热转印袋规格： 250*300mm |
|||||

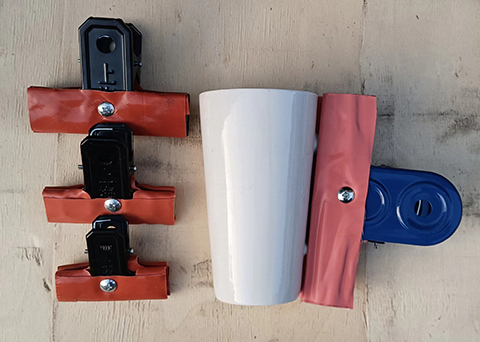

| 带手柄涂层杯 热转印收缩膜夹具 Sublishrink clamp for handle coating mug
|
 |
 |
共有四个规格 4 size： 小号small size: 8cm 中号 medium size:10cm 大号 large size:12cm 加大号 large+ size:16cm 专利号：ZL 202322783921.7
|
|||||

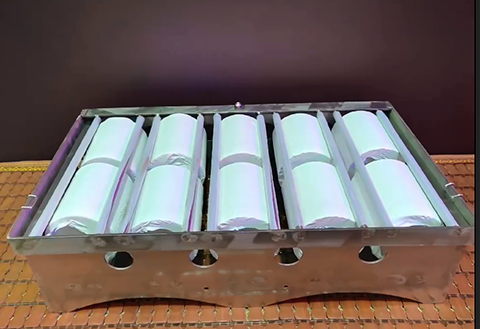

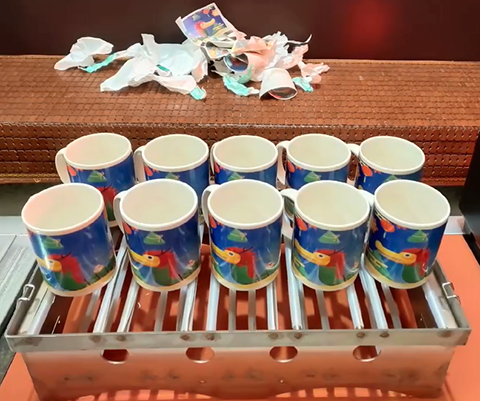

| 1出10 马克杯 满幅图案热转印 收缩膜支架
|
 |
 |
||||||

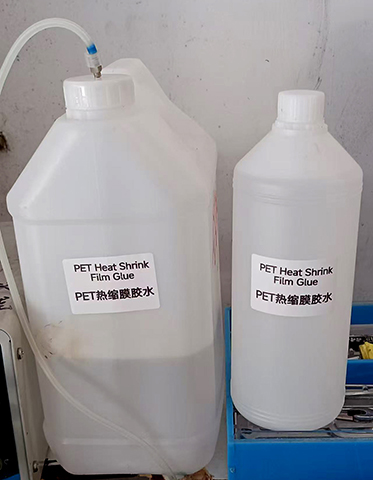

| PET 热收缩膜 专用胶水 PET heat shrink film Glue |
 |
 |
用于粘接PET热收缩膜 生产热转印收缩袋 Used to stick PET heat shrink film to produce the sublimation shrink wrap sleeves |
|||||
|
||||||||
